Teamcenter::BusinessObjectExtender Class Reference

Abstract BusinessObjectExtender. More...

#include <BusinessObjectExtender.hxx>

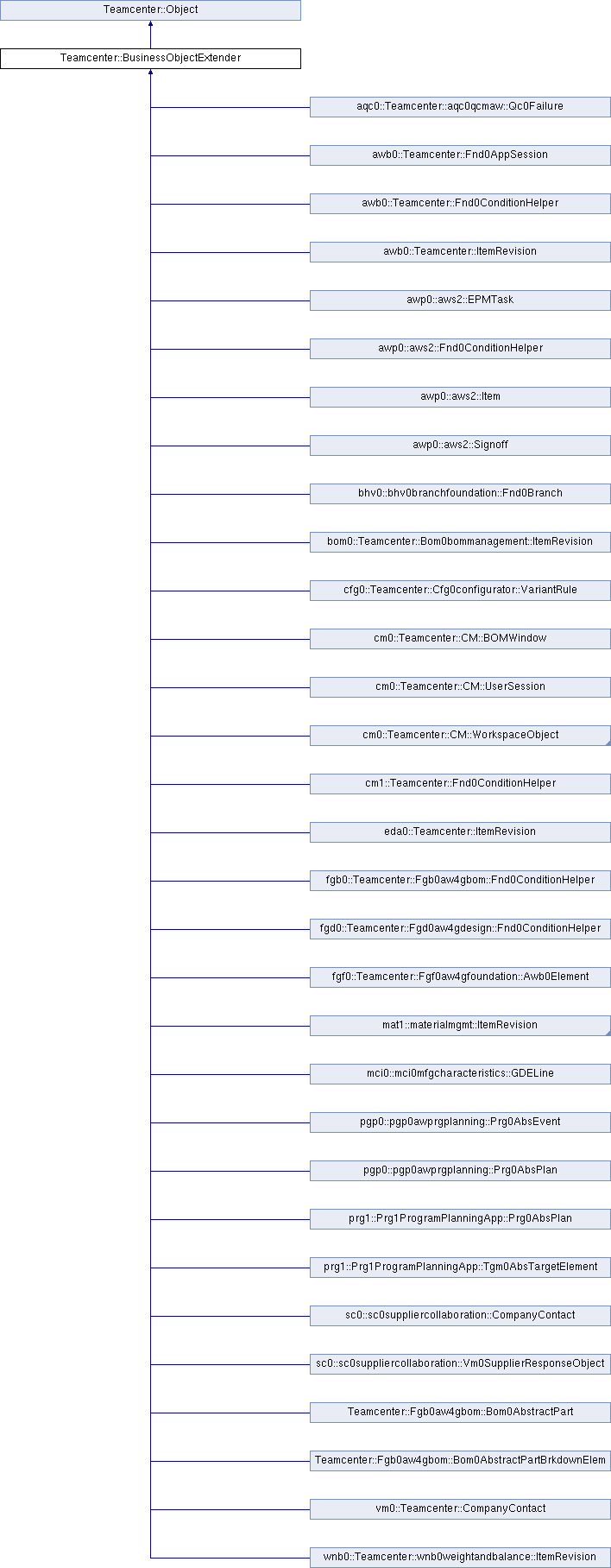

Inheritance diagram for Teamcenter::BusinessObjectExtender:

Public Member Functions
	BusinessObjectExtender (tag_t owningObjectTag)
tag_t	getTag () const
tag_t	getTypeTag () const
virtual void	initialize (RootObjectImpl *impl=0)
void	setTypeTag (tag_t tag)
virtual	~BusinessObjectExtender ()=0

Static Public Member Functions
static const std::string &	getExtenderInterfaceName ()

Private Member Functions
	BusinessObjectExtender (const BusinessObjectExtender &)
	BusinessObjectExtender ()
BusinessObjectExtender &	operator= (const BusinessObjectExtender &)

Private Attributes
tag_t	m_owningObjectTag
tag_t	m_owningObjectTypeTag

Static Private Attributes
static std::string	m_name

Detailed Description

Abstract BusinessObjectExtender.

Parent class for All Business Object Extenders.

class  Teamcenter::mySolution::Item : public Teamcenter::BusinessObjectExtender

Definition at line 58 of file BusinessObjectExtender.hxx.

Constructor & Destructor Documentation

Teamcenter::BusinessObjectExtender::BusinessObjectExtender ( tag_t  owningObjectTag )

explicit

Constructor for a BusinessObjectExtender.

Parameters

owningObjectTag

(I) The input Owning Object tag

virtual Teamcenter::BusinessObjectExtender::~BusinessObjectExtender ( )

pure virtual

Destructor for a BusinessObjectExtender.

Teamcenter::BusinessObjectExtender::BusinessObjectExtender ( const BusinessObjectExtender &  )

private

Private default constructor. We do not want this class instantiated without the business object passed in.

Teamcenter::BusinessObjectExtender::BusinessObjectExtender ( )

private

Private default copy destructor.

Member Function Documentation

static const std::string& Teamcenter::BusinessObjectExtender::getExtenderInterfaceName ( )

static

Retrieves the name of the Extender Interface.

Returns

The name of the Extender Interface.

tag_t Teamcenter::BusinessObjectExtender::getTag

(

)

const

Retrieves the Owning Object tag.

Returns

A tag for the Owning Object.

tag_t Teamcenter::BusinessObjectExtender::getTypeTag

(

)

const

Retrieves the Owning Object Type tag.

Returns

A tag for the Owning Object Type.

virtual void Teamcenter::BusinessObjectExtender::initialize ( RootObjectImpl *  impl = 0 )

virtual

Initialization for object instantiation.

Parameters

impl	(I) The input Implementation Object

BusinessObjectExtender& Teamcenter::BusinessObjectExtender::operator= ( const BusinessObjectExtender &  )

private

Private default copy constructor. We do not want this class instantiated without the business object passed in.

void Teamcenter::BusinessObjectExtender::setTypeTag

(

tag_t

tag

)

Sets the Type Tag from the owning Object.

Parameters

tag	(I) The input Type tag

Member Data Documentation

std::string Teamcenter::BusinessObjectExtender::m_name

staticprivate

Name of the Object.

Definition at line 113 of file BusinessObjectExtender.hxx.

tag_t Teamcenter::BusinessObjectExtender::m_owningObjectTag

private

Owning business object tag.

Definition at line 118 of file BusinessObjectExtender.hxx.

tag_t Teamcenter::BusinessObjectExtender::m_owningObjectTypeTag

private

Owning business object type tag.

Definition at line 123 of file BusinessObjectExtender.hxx.

---

The documentation for this class was generated from the following file:

• BusinessObjectExtender.hxx
